型号及参数Model and specifications |

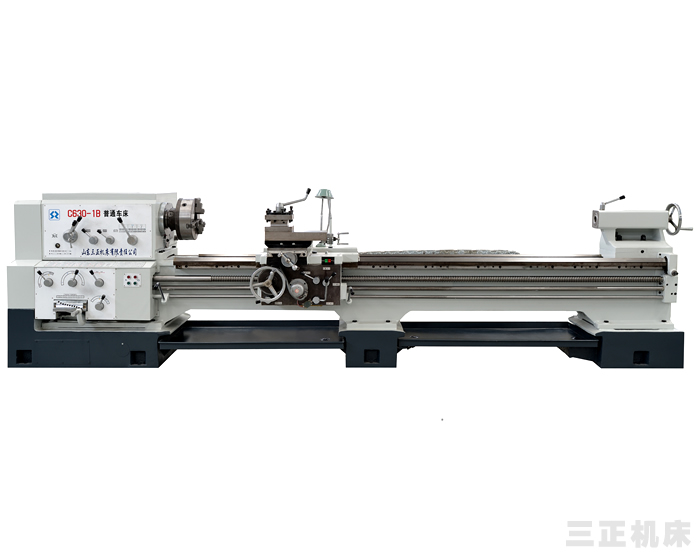

C630—1B |
C630—1BM |
C630—1BG |
C630—1BMG |
|
床身上***大回转直径Max.swing over bed |
630mm |
630mm |
800mm |
800mm |
|
马鞍内***大回转直径 Max.swing in gap |
|
800mm |
|
1000mm |
|
马鞍有效利用长度 Available length in gap |
|
300mm |
|
300mm |
|
***大加工长度 Max. workpiece length |
1500 3000 4000 5000 6000 7000 8000 mm |
|
刀架上***大回转直径 Max.swing over carriage |
350mm |
550mm |
|
主轴内孔直径 Hole through spindle |
Φ70mm |
|
尾座套筒锥度 Taper of the tailstock |
莫氏5号 |
莫氏5号 |
|
床身淬火硬度 Bed quenching hardness |
HRC52 |
HRC52 |
|
床鞍快速移动 Saddle quick moving speed |
4000mm/min |
4000mm/min |
|
主轴转速级数 Number of spindle speed changes |
18 steps |
|
主轴转速范围 Range of spindle speed changes |
16～820r/min |
|
丝杠螺距 Screw pitch |
1/2吋 |
|
公制螺纹范围和种数 Range and number of metric thread |
1～224mm/52种 |
|
英制螺纹范围和种数 Range and number of whitworth thread |
28～2t.p.i/40种 |
|
模数螺纹范围和种数 Module thread range and number |
0.25～56mm/41种 |
|
径节螺纹范围和种数 Pitch thread range and number |
1～112t.p.i/38种 |
|
主电机功率 Power of main motor |
11KW |
|
加工工件精度 Processing workpiece precision |
IT7 |
|
工件表面粗糙度 Workpiece surface roughness |
Ra1.6 |
